Challenges

困っている作業員イラスト

We were considering upgrading the equipment, but we had no idea on how to automate the existing manual machine line to achieve the desirable benefits.

Points of the problem faced by the customer
  1. The customer had no specialist for considering the automation of equipment in the company.

  2. The machining operations were performed in three processes using two units of single-spindle lathes and one machining center. (The customer wanted to effectively utilize the limited factory space by reducing the number of machines.)

  3. The production line was manually handled by operators, so there was a limit to the amount that could be produced.

    In addition, since the measurement was also performed manually, the quality was inconsistent due to measurement errors or correction input errors.

Solutions

Listening to the above customer’s issues and proposing Muratec's original automation solutions!

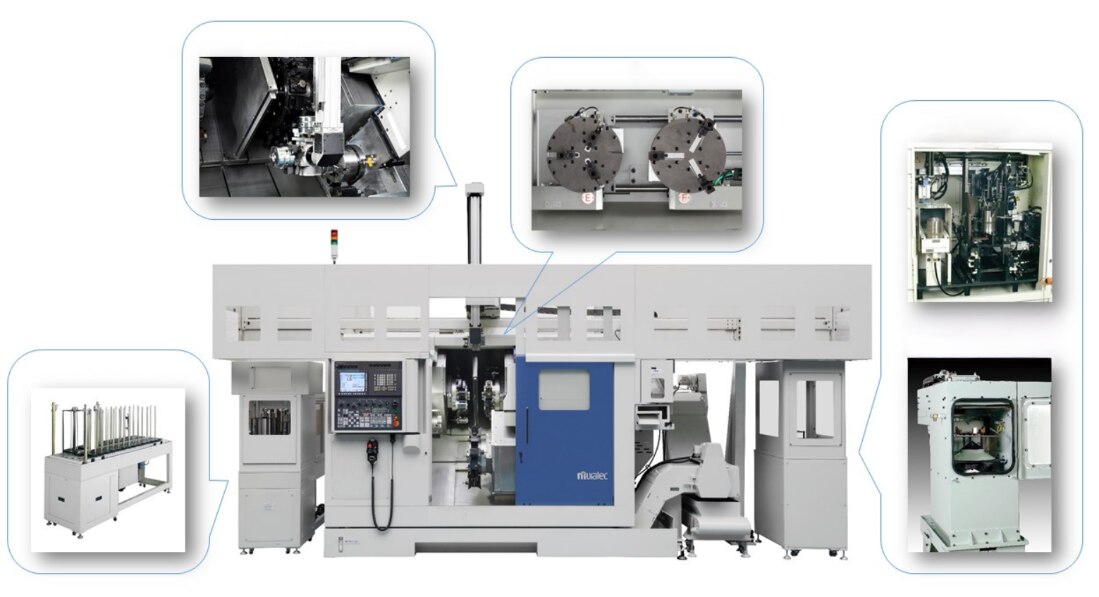

Achieving both process integration and machining automation by installing a gantry loader on our multi-tasker MT200 Turning Center!

After carefully considering the situation and challenges of the customer, we have proposed our original automation solution.
Based on our wealth of experience in automation proposals, we always make the most suitable proposal for individual customers.

MT

1.The integration of multiple processes into one machine

In our system, after machining of OP10 with the left-side spindle, OP20 can be also machined with the same left spindle by using an external turn around device.

In addition, OP30 is machined with the right-side spindle while the workpiece orientation is maintained in the kissing cycle.

As a result, the production line space has been saved significantly by reducing the number of machines from 3 units (3 spindles) to 1 unit (2 spindles) for the same machining operations.

2.Automation with gantry loader

Installation of our gantry loader has made it easy to automate a series of operations from loading/unloading to measuring.

In addition, automatic operations are performed even during lunch breaks and after regular working hours to increase production volume. Moreover, automatic feedback of the measurement results from the measuring device to the machine has enabled the product quality to be more stable than ever before.

Effects after introduction

The integration of multiple processes into one machine has realized the line space saving and facilitated product management.

The automation of the production line has greatly reduced man-hours for line operations and eliminated the conventional manual work, resulting in more consistent quality.

Product Information

In-line Twin Spindle CNC Tuning Center
MT200

The product in the case study introduced here is the In-line Twin Spindle CNC Tuning Center ”MT200”
